Top » Catalog » Connectors » DIN Connectors » Lumberg » Cable Sockets IP40 » SGB.K6

6.80CHF
ab 10 6.15CHF
ab 50 5.79CHF
ab 100 5.45CHF

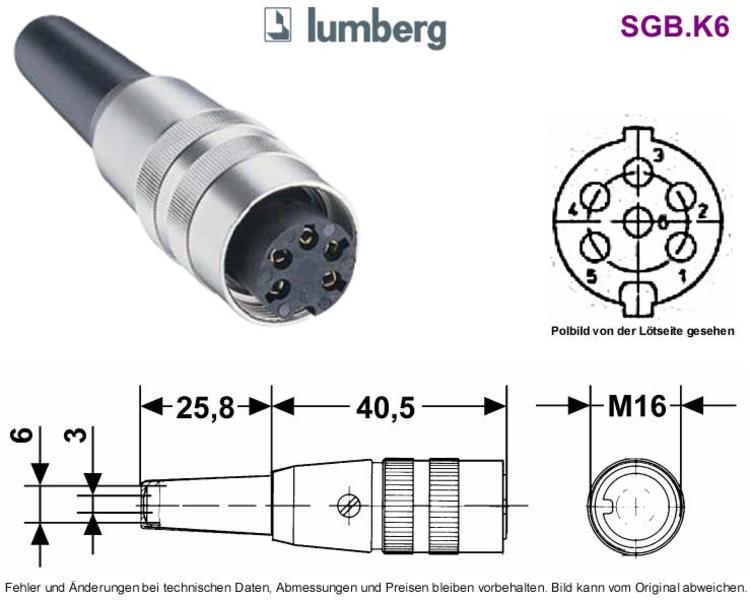

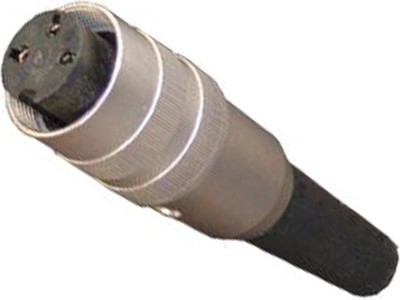

6-Pole Female Plug with Flush Lock-Ring Lumberg KV60

Bestell-Nr.: SGB.K6

Availability:

Ready for shipping!

6-Pole Female Plug with Flush Lock-Ring Lumberg KV 60 IP40 Mates with SV WSV SFV Series

Socket acc. to IEC 60130-9, IP 40, straight version, with threaded joint and solder terminals, with long kink protection.

Number of poles: 6
Configuration: 60°
Angle: 240°
DIN 45322
Rated voltage: 250VAC
Test voltage/60s: 2kV
Cable diameter: 4 - 6mm
Wire section: < 0.75mm2
Rated current: 5A
Contact resistance: < 5mΩ
Temperature range: -40°C to +85°C
Info as pdf-file
Make: Lumberg
Type: KV60 KV-60

DIN Connectors as html file
Our Connector Catalogue (DIN Audio) as pdf file
Cable Sockets (Female) LUMBERG
LUMBERG DIN-Connectors
DIN-Connectors (our whole assortment)
Connectors (our whole assortment)

Pictures are a guide only actual product may vary. Subject to alterations and errors.
Help us to eliminate errors: Please report any errors here. KV 60 KV60 KV60M KV-60-M
