Top » Catalog » Connectors » DIN Connectors » Lumberg » Plugs IP40 » SGB.S6

7.45CHF
ab 10 6.70CHF
ab 50 6.30CHF
ab 100 5.97CHF

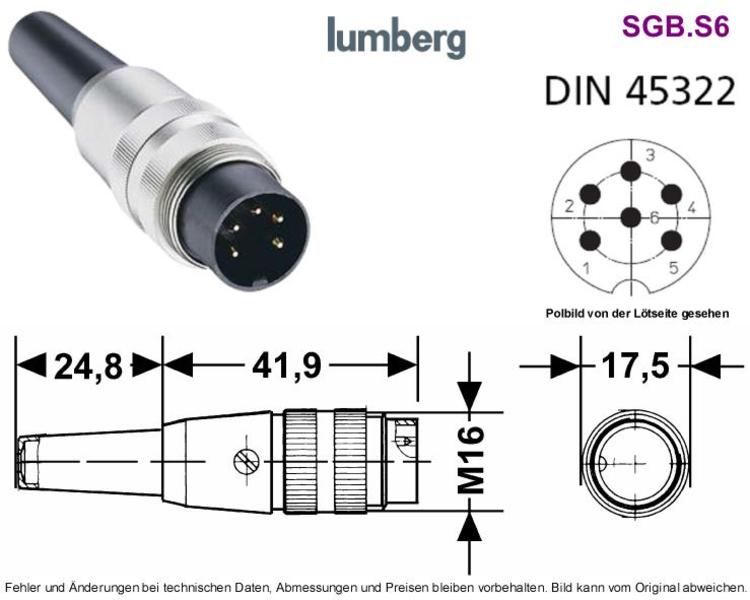

6-Pole Male Plug with Flush Lock-Ring IP40 Lumberg SV60

Bestell-Nr.: SGB.S6

Availability:

Ready for shipping!

6-Pole Male Plug with Flush Lock-Ring Dull Chrome IP40 Lumberg SV 60 Mates with KV, WKV and KFV Series

Plug acc. to IEC 60130-9, IP 40, straight version, with threaded joint, solder terminals and long bend protection, with long kink protection.

Number of poles: 6
Configuration: 60°
Angle: 240°
DIN 45322
Rated voltage: 250VAC
Test voltage/60s: 2kV
Rated current: 5A
Cable diameter: 4 - 6mm
Contact resistance: < 5mΩ
Temperature range: -40°C to +85°C
Info als pdf-File
Make: Lumberg
Type: SV60 SV-60

DIN Connectors as html file
Our Connector Catalogue (DIN Audio) as pdf file
More Plugs Male IP40
LUMBERG DIN-Connectors
DIN-Connectors (our whole assortment)
Connectors (our whole assortment)

Pictures are a guide only actual product may vary. Subject to alterations and errors.
Help us to eliminate errors: Please report any errors here. SV60 SV 60 SV60M SV 60 M
