D-SUB Print Socket Connector (Female) 37p with Solder Pin Angele

Bestell-Nr.: POD.K37P90N

Availability:

Ready for shipping!

D-SUB Print Socket Connector (Female) 37p with Solder Pin Angeled (90°)

Number of poles: 37

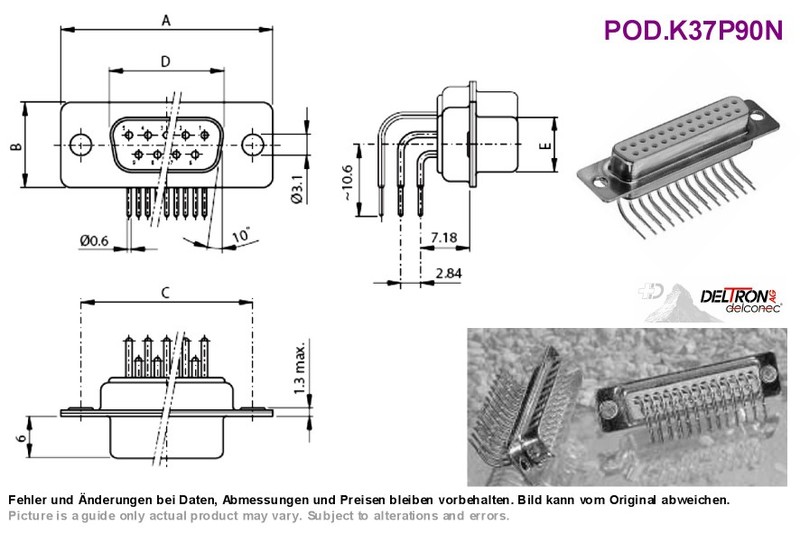

Dimensions: A=69.50mm B=12.40mm C=63.50mm D=54.96mm E=08.02mm
Proof voltage: 300Vrms
Test voltage: 1000Vrms
Rated current: 7A
Temperature range: -55°C to +150°C

IT Connectors as html file
More DSUB Female Connectors Angled
DSUB Connectors for PCB Mounting (our whole assortment)
D-Subminiatur Connectors (our whole assortment)
Information Technology / EDV (our whole assortment)

Pictures are a guide only actual product may vary. Subject to alterations and errors.
Help us to eliminate errors: Please report any errors here. D-Subminiatur Steckverbinder Stecker Female DSUB D-SUB DTS37SYC DTS 37 SYC 2422-606-93701 SD37 F40E
