Top » Catalog » Joining Technic » ICD / DIP Connectors » PCB Mount
2,54mm » POF.S50PV

5.20CHF
ab 10 4.65CHF
ab 50 4.37CHF
ab 100 4.11CHF

2.54mm 180° Connector Strip Male 50-Pol with Standard Lockin

Bestell-Nr.: POF.S50PV

Availability:

Ready for shipping!

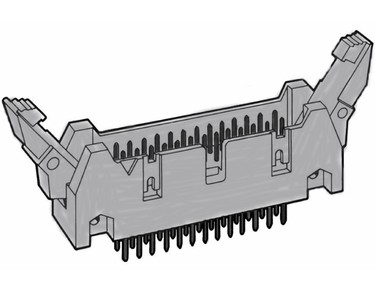

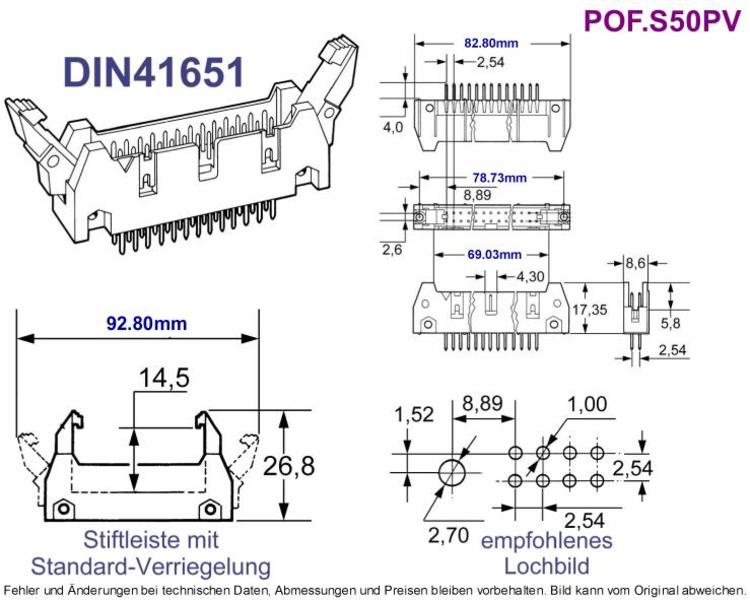

2.54mm 180° Connector Strip Male 50-Pol with Standard Locking Lever DIN 41651

Connector strip male with standard locking lever, Quickie III

- Vertical PCB Mount Same version horizontal mount
- System Quickie III = grey
- Connectable with FCI-series and competitor products
- Because of the special form of the locking system, the male connector strips can be put side by side without spacing loss

Number of poles: 50 (2x 25p)
Current rating: 1A
Test voltage: 1000Vrms
Spacing: 2.54 x 2.54mm
Operating temperature: -65°C to +125°C
Manufacturer: Compona
Type: 246 891-0

Suitable IDC Connector Female

IT Connectors as html file
For more 2.54mm IDC Connectors Male PCB Mount
IDC-Connectors Pfostenleisten
Joining Technic (our whole assortment)

Pictures are a guide only actual product may vary. Subject to alterations and errors.
Help us to eliminate errors: Please report any errors here. DIP Connector Connectors Insulation-displacement connector, (IDC) insulation-displacement technology/termination (IDT) or insulation-piercing connector suitcase connector connectors Compona 246891-0 6095024ES 609 5024ES 6095024-ES 609 5024-ES
