Top » Catalog » Cables / Braids / Wires » Data Transmission Cable » with Shielded » KIM.01.3

1.30CHF
ab 10 1.10CHF
ab 100 0.96CHF
ab 1000 0.79CHF

Li-YCY Cable 3x0.14mm2 (18x0.10) 1A Shielded – Sold per Meter

Bestell-Nr.:    KIM.01.3


Availability:     PICTURE_ONLY_FULL PICTURE_ONLY_FULL PICTURE_ONLY_FULL
  Ready for shipping!

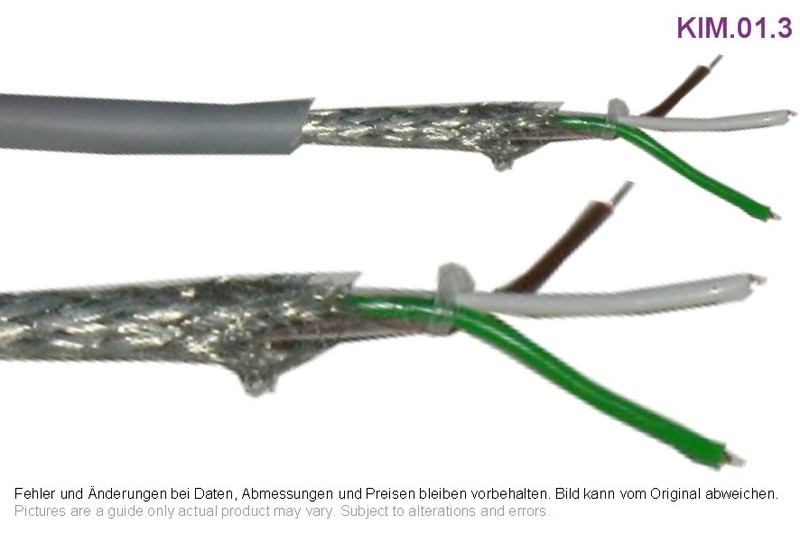

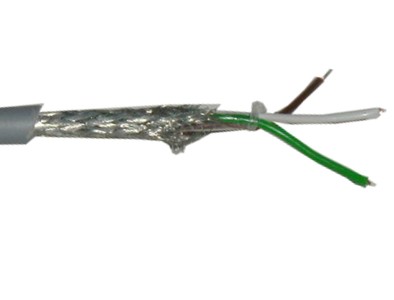

Li-YCY Cable 3x0.14mm2 (18x0.10) 1A Shielded – Sold per Meter

MUNFLEX LiYCY
Sold by the meter

Number of cores x cross section: 3 x 0.14mm2
Outer Ø: 3.9mm
Structure: 18 x 0.1mm
Current: 1A

Conductor: Bunch strand copper wire (fine), bare
Conductor stranding: Cores concentric in layers. Arrangement from outside to inside
Shielding: Total shielding of tinned copper braiding with an optical covering of min 80%
Sheath: PVC grey RAL 7001
Temperature flexible: -5°C bis +70°C
Temperature (fixed installation): -30°C bis +70°C
Operating voltage (Uo/U): 250V/250V

Data Transmission Cable Shielded
Data Transmission Cable No Shield
Cables, braids, wires (our whole assortment)

Pictures are a guide only actual product may vary. Subject to alterations and errors.
Help us to eliminate errors: Please report any errors here.
