Water Switch 9 – 12VDC (Module)
If the 2 sensor connections of the module come into contact with water, the built-in relay switches on. Sirens, other cutoff relays, etc. may be triggered with that.
Operating voltage: 9VDC are ideal (max 12VDC) please do only use a stabilised power supply
Current consumption: "Ready" < 10mA. In case of contact with water when the relay picks up < 90mA each with 9VDC
LED display: 1 LED for the indication of readiness "POWER", 1 LED for the indication "ON", if the relay switches on
Connections: free cables
Approved cable length towards the water sensors: max 5m with normal cable, max 100m with shielded cable, if the shielding braid is connected with the negative pole of the distribution voltage
Dimensions: sealing case approx 60 x 45 x 20mm (without fastening straps)

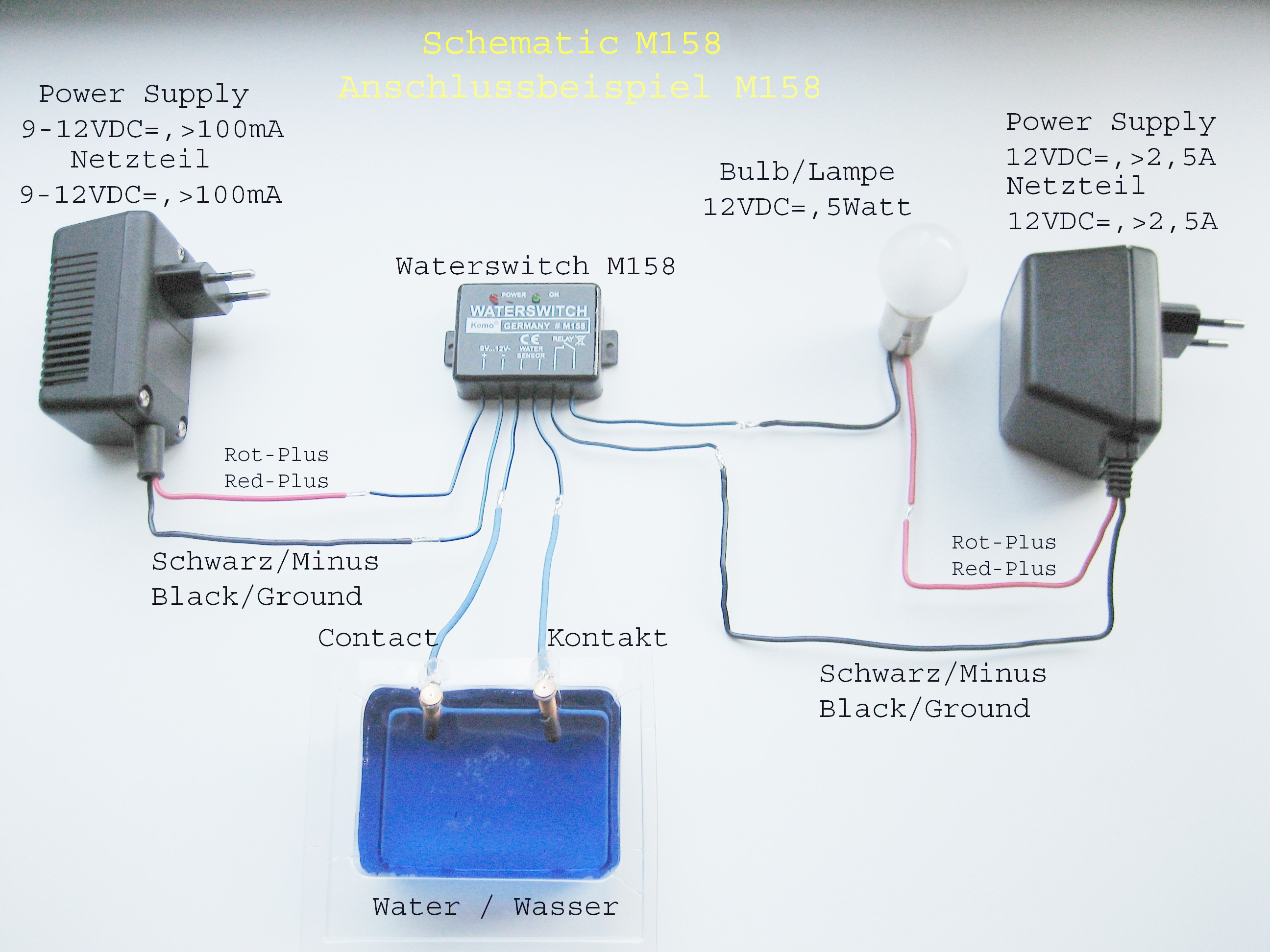

Connection
Info as pdf file
Make: Kemo
EAN 4024028031583
