47.80CHF
ab 10 43.86CHF

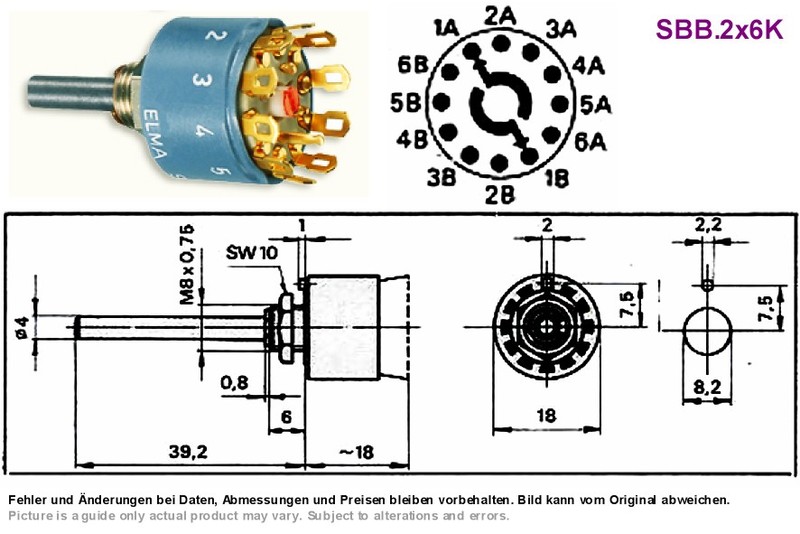

Rotary Switch 2-Pole 6 Positions with End Stop ELMA Typ 01

Bestell-Nr.: SBB.2X6K

Availability:

Ready for shipping!

Rotary Switch 2-Pole 6 Positions with End Stop ELMA Typ 01

Description
Rotary switch with bridge contact principle.
On these switches with fixed end-stop, adjustable stops can be set, by means of a plastic pin, on any position between 2 and the maximum (to be ordered separately).

Function (pole x position): 2 x 6
Version: shorting, with solder eyelets
Voltage: < 42 V
Current: < 2 A
Switching capacity with resistive load: 2 V/1,0 A AC/DC
Switching capacity with resistive load: 24 V/0,5 A AC/DC
Switching capacity with resistive load: 42 V/0,4 A AC/DC
Operating temperature range: -40°C to +85°C
Diameter shaft: 4mm
Overall diameter: 18mm
Threaded bushing: M8 x 0,75
Indexing angle: 30°
Eyelets: gold flash
Manufacturer: ELMA
Type: 01-1260 011260

Switches and Push Buttons as html file
For more Rotary Switches ELMA Type 01
Rotary Switches (our whole assortment)
Switches. Push Buttons (our whole assortment)

Pictures are a guide only actual product may vary. Subject to alterations and errors.
