Top » Catalog » ELMA » SBB.A112

20.80CHF
ab 10 19.21CHF
ab 50 18.10CHF
ab 100 17.20CHF

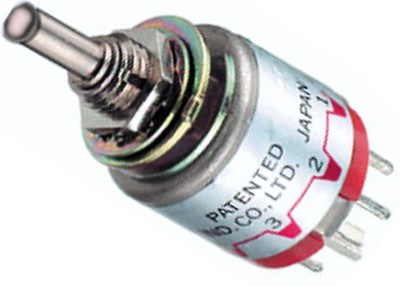

Rotary Switch 1-Pole 12 Positions Nikkai MR Serie

Bestell-Nr.:    SBB.A112


Availability:     PICTURE_ONLY_ONE
  Ready for shipping!

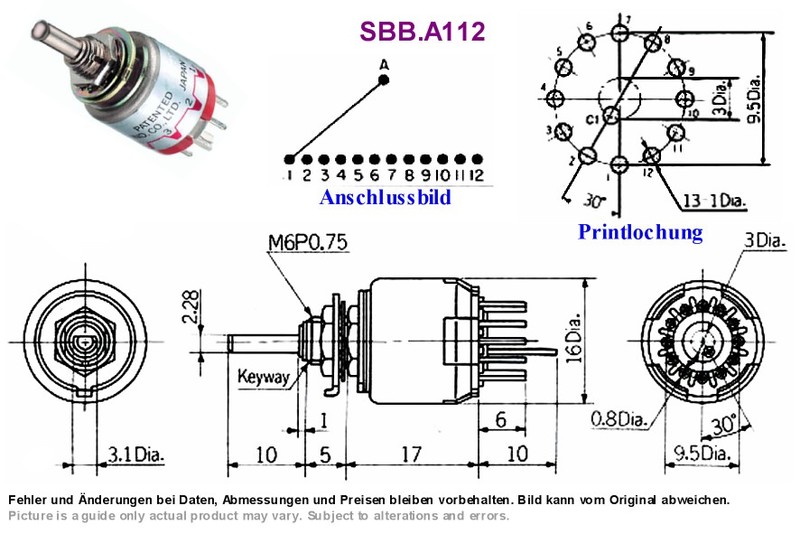

Rotary Switch 1-Pole 12 Positions Nikkai MR Series

1/2" Diameter Process Sealed Logic Level Rotary Switches

- Half-Inch diameter process sealed rotaries
- Shaft actuated with PC terminals
- Adjustable stopper plate allows 2 – 12 position settings.

Pole no: 1
Number of positions: 2 – 12
Stopper settings: 2, 3, 4, ....12
Number of terminals: 1 COM, 12 LOAD
Version: non-shorting (break-before-make)
Capacity (resistive load): 250mA @ 125VAC
Indexing: 30°
Shaft: brass with nickel plating
Bushing/Housing: zinc alloy with zinc plating
Shaft diameter: 2.3mm
Diameter: 16mm
Mounting: M6 x 0.75
End contacts and terminals: brass with silver plating
Contact resistance: <10m-Ohm
Operating temperature: -10°C to +70°C
Manufacturer: Nikkai
Type: MRA112 MRA-112 MR-A112

Included in delivery: Rotary switch with mounting hardware, without knob please order separately

Switches and Push Buttons as html file
For more Rotary Switches Nikkai MR-Series
Rotary Switches (our whole assortment)
Switches. Push Buttons (our whole assortment)

Pictures are a guide only actual product may vary. Subject to alterations and errors.
